Properties & Advantages:
Extremely low thermal conductivity
High thermal stability
Shock and vibration resistant
No harmful respirable fibres
Simple to cut and shape
Environmentally friendly
Resistant to most chemicals
Non combustible
Clean and easy to handle
|
Product
|
Siltherm Slatflex
|
|
Classification
|
|
℃
|
1000
|
1100
|
1200
|
|
Density
|
|
Kg/m³
|
280
|
320
|
500
|
|
@10% Compression
|
|
Mpa
|
≥0.30
|
≥0.32
|
≥0.5
|
|
Specific Heat Capacity
|
800℃
|
kj/kg.K
|
0.99
|
1.07
|
1.08
|
|
Thermal Conductivity
|
200℃
|
W/mK
|
0.022
|
0.024
|
0.027
|
|
400℃
|
W/mK
|
0.025
|
0.028
|
0.032
|
|
600℃
|
W/mK
|
0.028
|
0.037
|
0.039
|
|
800℃
|
W/mK
|
0.03 3
|
0.044
|
0.045
|
|
Linear Shrinkage
|
950℃ (24 hours)
|
%
|
≤2.5
|
≤0.5
|
≤0.5
|
|
1050℃ (24 hours)
|
%
|
-
|
≤2.5
|
≤2.5
|
|
1150℃ (24 hours)
|
%
|
-
|
-
|
≤3.5
|
|
Product |
Maximum Dimension (mm) |
Thickness(mm) |
Tolerance(mm) |
|
Siltherm Slatflex |
1000*600 |
3-10 |
±2mm(LXW) |
|
Siltherm Slatflex |
1200*1100 |
10-35 |
±1mm(H) |
Working & Processing:
Siltherm Slatflex can be shaped easily with a simple cutter. They can be fixed in place with glue or anchors , pins , or clips. The panels can be installed with wire and straps , identical to conventional insulation materials.
Typical Applications:
Petrochemicals & Power generation

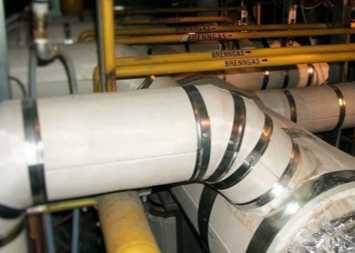

Back-up insulation in refractory lined pipes
Piping line solutions
Concentrated Solar Power
Vessels and reactors
Exhaust Systems
Hot pipe support
